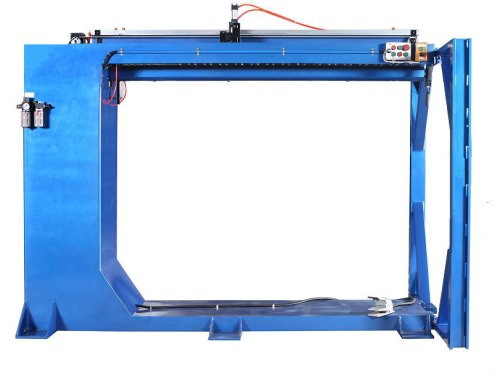

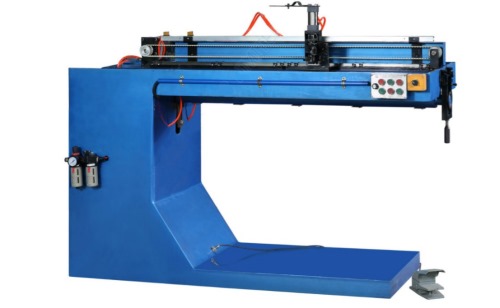

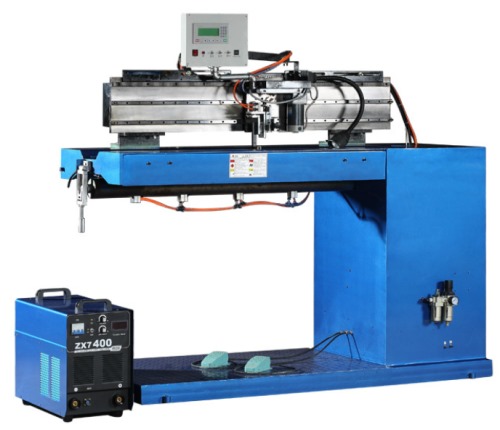

TZF系列自動氬?。ǖ入x子）直縫焊機

TZF Series Automatic Argon Arc (Plasma) Longitudinal Seam Welding Machine

整機特性：

1 本機采用琴鍵式銅合金壓緊機構，提供均勻穩定的工件夾持和冷卻效果；

2. 配備焊縫背面保護襯套和成型槽，以保證提供穩定的氣體保護和確保達到單面焊接雙面成型的完美效果；

3.本機可按要求選用PLC或繼電器集成控制；

4. 焊槍行走采用直流電機驅動，焊接速度無級可調；

5. 可任意匹配各種類型弧焊電源（氬弧焊/CO2焊/等離子弧焊）；

6.設備設計人性化, 只需普通工人操作即可,為工廠解決招工難招焊工師傅更難,生產效率低等問題；

7.自動直縫焊接主要用于不銹鋼、鐵、鋁、黃銅等各種金屬的圓筒、拼板的高質量、低變形的直線性自動焊接.

Main Features and Applications

 1.Adopted keyboard type copper pressing mechanism, to get the regular and stable clamping and cooling effect;

2. Special designed back protective copper block and molding slot, to assure the stable gas shield and achieve double side forming

in single side welding;

3.Machine can adopt PLC or Relay integrated control as requirement;

4. Torch moving driven by DC motor , welding speed stepless adjustable;

5.Apply to cooperate welding with TIG, MIG, MAG and Plasma-Arc welding source;

6.Equipment design humane, just ordinary workers can be, for the factory to solve the recruitment difficult to recruit welding

master more difficult, low production efficiency issues;

7.Automatic TIG(Plasma) Longitudinal Seam Welding Machine is mainly used for the high quality and low distortion automatic

longitudinal welding of the metallic cylinders and aligned plates made with stainless steel, iron, aluminum and brass, etc.

主要技術參數 Main Technical Parameters

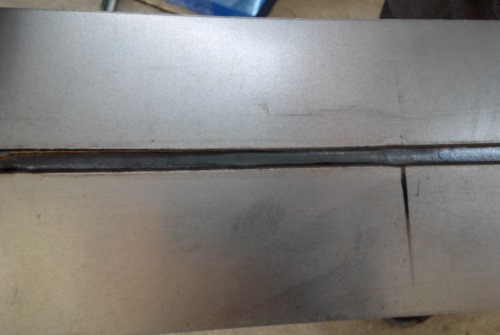

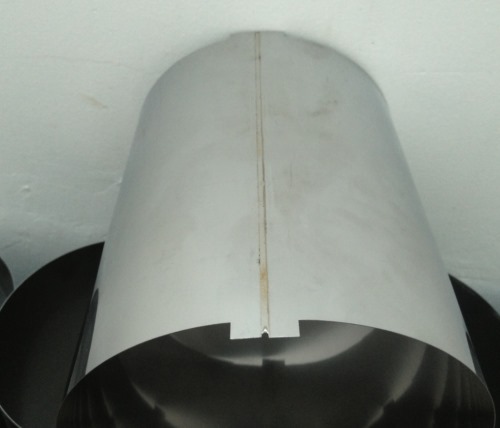

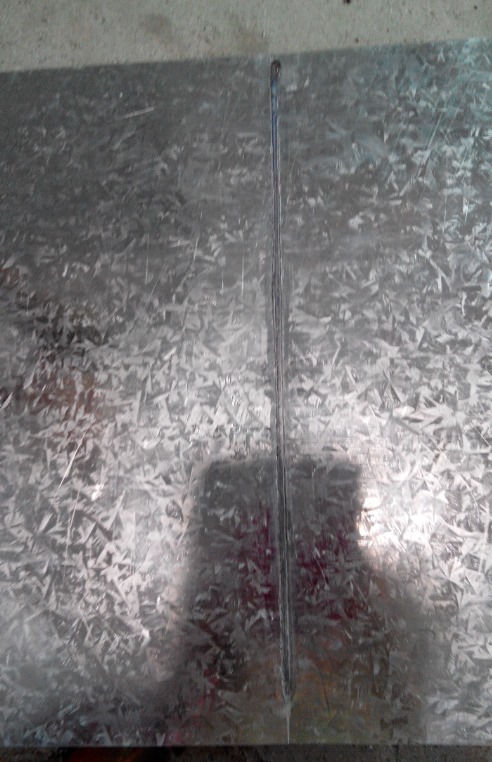

焊接樣品
